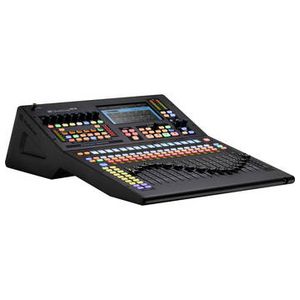

PreSonus StudioLive Series III SE 16 Digital Conso

Designed for live sound reinforcement - live recording - and studio recording applications - the PreSonus StudioLive SE 16 is a Series III 40-channel digital console - recorder - and audio interface in a subcompact - rack-mountable frame Featuring 16 studio-grade - fully recallable - XMAX-R preamps and vintage-style EQ and compression options on every channel and bus - the StudioLive SE 16 allows you to mix faster and sound better With the 16 FlexMixes - you can configure subgroups - auxes - or matrix mixes on a per mix basis Matrix mixes include all 40 input channels and every bus - making it easy to create front- and side-fill mixes for large venues or producer mixes for broadcast applications Additionally - the mixer offers 24 DCA groups - four dedicated subgroup mixes - and four FX mixes - each with a stereo return and dedicated processing with lush reverbs and delaysThe StudioLive SE 16 features an integrated continuously bidirectional 64x64 USB 20 audio interface and onboard 34x34 SD recorder - which allows you to integrate backing tracks - record your show or mix your next album - plus it comes with a suite of integrated software including Capture multitracking - virtual soundcheck software - and a perpetual license of Studio One Pro For even more flexibility - each channel can easily switch between analog - USB - SD - and AVB sources - making integrating your analog and digital gear easier than ever before The StudioLive SE 16 can be controlled remotely from a computer or tablet and offers the ability to dial in a mix offline with Universal control The built-in - Milan-certified AVB audio networking allows you to integrate stage boxes - personal monitor mixers - switches - and powerful accessories like the AVB-D16 AVB-to-Dante bridge that lets you add 16x16 Dante networking when you need it

Features: Subcompact, Rack-Mountable Frame, Built-In AVB Networking, Integrated 64x64 USB Audio Interface, Onboard 34-Track SD Recorder, 10 Analog FlexMix Outs: 6 XLR and 4 TRS, 16 XMAX Preamps: 8 Mic and 8 Mic/Line, 17 Touch-Sensitive Motorized Faders, Metro: Live Remote Mixing Over Internet

Max I/O Capacity: 38x Input / 26x Output

Number of Analog Input Channels: 16 (16 Mono / 0 Stereo)

Number of Mic Preamps: 16

Number of Analog Output Channels: 10

Mix Routing: 16x Bus

Groups: 24x DCA Group

Presets: Yes

Faders & Level Adjustment: 17 Motorized Fader(Touch Sensitive)

Meters: 2x 12-Segment LED

Input Polarity: Normal/Reverse

Dynamic Processing: Compressor - Limiter - Gate

EQ: Input Channels:4-Band EQ Output Buses:4-Band EQ

Graphic EQ: Yes

Solo/Mute: Solo - Mute per Input Channel

Audio Delay: Yes

Automatic Mic Mixing: Yes

Signal Generator: Yes

Analog Inputs: 8x XLR TRS Balanced Mic Input8x Combo XLR-1/4-inch TRS Balanced/Unbalanced Mic/Line Input1x Stereo RCA Tape Input (1 Stereo Pair)1x XLR Talkback Input

Analog Outputs: 1x Stereo RCA Tape Output (1 Stereo Pair)2x XLR 3-Pin Main Output1x XLR 3-Pin Mono-Summed Output2x 1/4-inch TRS Monitor Output1x 1/4-inch TRS Headphone Output6x XLR 3-Pin Subgroup/Aux/Matrix Output4x 1/4-inch TRS Subgroup/Aux/Matrix Output

Phantom Power: +48 V ±2 V (Selectable on Individual Inputs)

Digital I/O: 1x RJ45 (Control - 1 Gb/s)1x RJ45 AVB (I/O)1x XLR AES3 Output

MIDI I/O: No

USB I/O: 1x USB-B 2.0()

Expansion Ports: No

Wireless: No

External Display I/O: No

Max Multitrack Recording: 34 Tracks

Media Support: SD - USB Drive

OS Compatibility: Computer: macOS 10.8 or Later / Windows 7 or LaterMobile: Android/iOS

RAM Requirements: 4 GB - 8 GB Recommended

Mobile Device Compatibility: iPad Android Smartphone Android Tablet

Input Power: 90 to 230 VAC - 50 / 60 Hz

Rack Mountable: Yes

Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC

Dimensions: 17.6 x 23 x 6.5-inch / 44.7 x 58.3 x 16.5 cm
