Allen & Heath Qu-7D 36-Channel / 12-Bus Digital Mi

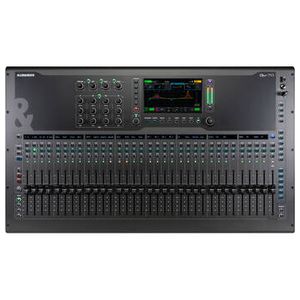

Borrowing heavily from the popular QU series - the Allen & Heath QU-7D is a professional-grade digital mixer with powerful XCVI processing - updated FX - and Everything I/O connectivity There's also a 7 capacitive touchscreen - channel strip displays - customizable layers - extra SoftKeys - and SD-card recordingThe Qu-7D offers a channel count of 32 mono and two stereo channels for a total of 36 inputs - 6 mono/linkable - 6 stereo aux/group The mixer combines high performance audio processing and professional features with ease of use and hands-on control The Qu-5D features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment

Features: 16x16 48/96 kHz Dante Interface, 32 Microphone Preamps, 7-inch Capacitive Touchscreen, 96 kHz FPGA Processing, Six Stereo FX Engines with Returns, 32x32 USB Audio Interface, AES Output, 12 XLR Outputs, Eight Soft Keys, SLink Port for Remote Audio & Expansion

Max I/O Capacity: 36x Input / 12x Output

Number of Analog Input Channels: 36 (32 Mono / 2 Stereo)

Number of Mic Preamps: 32

Number of Analog Output Channels: 22

Mix Routing: 6x Mono Aux Send6x Stereo Aux Send

Groups: 6x Subgroup

Presets: No

Display: 7-inch Touchscreen

Faders & Level Adjustment: 33x 3.9-inch / 100 mm Fader

Meters: Main Meter:2x 12-Segment LEDChannel Meter:Single LED

Dynamic Processing: Input Channels:Compressor - GateMaster:Compressor - Limiter

EQ: Input Channels:4-Band Parametric

Filters: High-Pass

Solo/Mute: Solo-in-Place/AFL - Mute - PFL per Input Channel - Bus - Master

Audio Delay: Adjustable Up to 682 ms

Automatic Mic Mixing: Yes

Sample Rates: 96 kHzAES3 Output:44.1 / 48 / 88.2 / 96 kHzStereo Record:96 kHzStereo Playback:44.1 / 48 / 96 kHzMultitrack Playback/Multitrack Record:96 kHz

Bit Depth: Up to 96-BitStereo Record:24-BitStereo Playback:16 / 24-BitMultitrack Playback - Multitrack Record:24-Bit

Analog Inputs: 1x XLR Talkback Input16x XLR Balanced Mic/Line Input4x 1/4-inch TRS Balanced Channel Input (2 Stereo Pairs - Half-Normalled)

Analog Outputs: 12x XLR Balanced Output2x 1/4-inch TRS Balanced Output

Phantom Power: +48 V

Digital I/O: 1x etherCON Input/Output (I/O)1x XLR AES3 Output1x etherCON Dante Input/Output

MIDI I/O: No

USB I/O: 1x USB-A 2.0 (External Memory)1x USB-C 2.0 (Audio Streaming)

USB I/O Capacity: 32x Input / 32x Output

Other I/O: 1x RJ45 Control In/Out (Bi-Directional)1x 1/4-inch Footswitch Input

Wireless: No

External Display I/O: No

Max Multitrack Recording: 32 Tracks

Media Support: SD - USB Drive

File Format Support: WAV

OS Compatibility: Computer: Windows 10 or Later / macOS 10.14 to 11Mobile: Android/iOS

Mobile Device Compatibility: Android Smartphone Android Tablet iPad iPhone

Input Power: 100 to 240 VAC - 50 / 60 Hz

Rack Mountable: Yes

Operating Conditions: 32 to 104 degreesF / 0 to 40 degreesC

Dimensions: 24 x 8.4 x 18.7-inch / 61 x 21.3 x 47.5 cm
