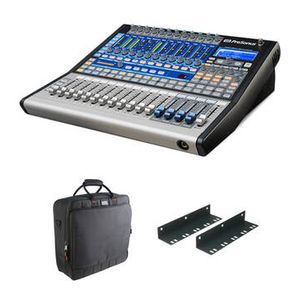

Features: Padded Nylon Mixer Bag, Rack Mount Brackets, 16 Total Input Channels, 18-Input and 16-Output USB Interface, 8 Mono Mic & Line Input Channels, 4 Stereo Line Channel Inputs, Compact Size, Twelve Class-A XMAX Mic Preamps, Two 2-Bit Digital Effects Processors, Full Dynamics Processing
Number of Analog Input Channels: 16
Gain/Trim Range: Line:-20 dB to +20 dB (Balanced) Mic/Line:-16 dB to +67 dB
Gate Parameters: Threshold: -84 to 0 dBAttack: .2 ms to 2.5 msRelease: 70 ms
Compressor Parameters: Threshold: -56 to 0 dBRatio: 1:1 to 14:1Attack: .2 ms to 180 msRelease: 150 ms to 1.0 secKnee: Soft / Hard
EQ Parameters: HF Shelf:±15 dB at 1.4 kHz to 18 kHz (Shelf or Bell Selectable) MF Notch/Peak:±15 dB at 260 Hz to 3.5 kHz LF Shelf:±15 dB at 36 Hz to 465 Hz (Shelf or Bell Selectable)
Sample Rates: 44.1 / 48 kHz
Bit Depth: AD/DA Conversion:24-Bit
DSP: 32-Bit Floating Point
Converter Dynamic Range: A/D:118 dBA at 48 kHz D/A:118 dBA at 48 kHz
Jitter: < 20 ps RMS
Jitter Attenuation: > 60 dB
dBFS Reference Level: +18 dBu = 0 dBFS
Frequency Response: Direct Output:20 Hz to 20 kHz 0/-0.5 dBu (2901653073) Main Output:20 Hz to 20 kHz ±0.5 dBu (2901653073) Line Input to Direct Output:10 Hz to 40 kHz -0.5 dBu (2901653073) Line Input to Main Output:20 Hz to 20 kHz -0.5 dBu (2901653073)
Max Input Level: Line Input:+22 dBu (Unbalanced) Line Input:+22 dBu at Unity Gain (Balanced) Mic Input:+16 dBu
I/O Impedance: Line Input:10 Kilohms Main Output:100 Ohms Aux Output:100 Ohms Monitor Output:100 Ohms Mic Input:1 Kilohms
Crosstalk: Input to Output:-90 dBu Adjacent Channels:-87 dBu
CMRR: 65 dB at Unity Gain
EIN: 125 dB130 dB (2901653035)
SNR: Line Input to Direct Output:-105 dBA at Unity Gain (+4 dBu Reference)Line Input to Main Output:-95 dBA at Unity Gain (+4 dBu Reference)Mic/Line Input to Direct Output:-102 dBA at Unity Gain (+4 dBu Reference)Mic/Line Input to Main Output:-95 dBA at U
THD: Line Input to Direct Output:< 0.0007% at Unity Gain (+4 dBu - 2901653246) Line Input to Main Output:< 0.005% at Unity Gain (+4 dBu - 2901653246) Mic/Line Input to Direct Output:< 0.005% at Unity Gain (+4 dBu - 2901653246) Mic/Line Input t
Analog Inputs: 8x 1/4-inch TRS Balanced Input2x Stereo RCA Unbalanced Input12x XLR Balanced Mic Input8x 1/4-inch TRS Balanced Line Input (4 Stereo Pairs)
Analog Outputs: 2x XLR Balanced Main Output (1 Stereo Pair)2x 1/4-inch TRS Balanced Monitor Output (1 Stereo Pair)
Phantom Power: +48 V
USB I/O: 1x USB-B 2.0 (Host Connection)
OS Compatibility: macOS 10.8.5 or Later Windows 7 Windows 8.1 Windows 10 9.3 or Later 5.0 or Later
Processor Requirement: Intel Core 2 Duo
RAM Requirements: 4 GB - 8 GB Recommended
Storage Requirements: 30 GB
Mobile Device Compatibility: iPad Android Smartphone Android Tablet
Minimum Display Resolution: 1366 x 768
Internet Connection: Yes
Required Hardware: USB 2.0 Port
Input Power: 90 to 240 VAC - 50 / 60 Hz
AC Power I/O: IEC
Power Consumption: 100 W
Rack Mountable: No
Dimensions: 15.6 x 16 x 5.5-inch / 395.2 x 406.4 x 139.7 mm
Weight: 20 lb / 9.1 kg
